M.2转四口USB 3.0扩展模组
EGPU-3401
特点
- M.2 2280 B+M 接口
- 符合 PCI Express 基础规范 2.0 版
- 符合 USB 3.0 规范 1.0 版，支持最高 5Gbps 传输速率
- 支持 4 个 USB 3.0 端口（共享 PCIe 2.0 x1 带宽）
- 符合 EN61000-4-2（ESD）标准：空气放电 15kV，接触放电 8kV
- 采用 12V 外接电源供电
- 可选工业级宽温支持（-40°C 至 85°C）

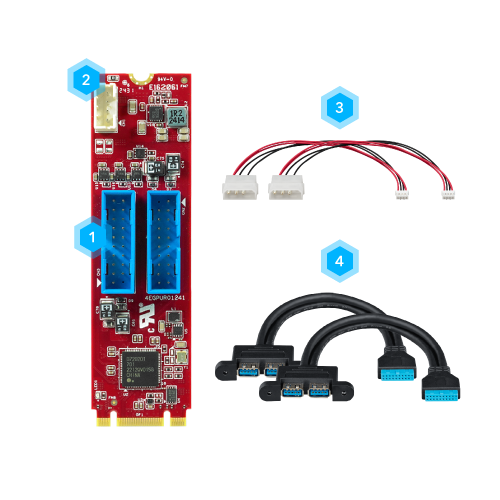

接口配置
- 1USB 3.0 19-pin Header
- 212V External Power Connector
- 312V Power Cable
- 4USB 3.0 Cable
EGPU-3401是一款M.2转四口USB 3.0扩展模组，可为系统扩展四个USB 3.0接口。该模组符合PCI Express基础规范2.0版和USB 3.0规范1.0版标准，支持最高5Gbps的数据传输速率。此外，EGPU-3401兼容xHCI 1.0协议，需外接12V电源供电，是工业应用场景下理想的USB 3.0扩展解决方案。
探索多元应用场景与成功案列
EDGE SERVER
Designed for edge computing, our products ensure stable performance in harsh conditions, supporting real-time data processing at the edge device.
DATA CENTER
Driving the backbone of modern computing, our solutions deliver high performance and reliability for data-intensive operations.
TRANSPORTATION
Our solutions enhance operations, management, and security for EVs, buses, subways, and more.
INDUSTRIAL / EMBEDDED
Designed for harsh environments, our products offer high durability to meet the demands of industrial automation and embedded systems.
SURVEILLANCE & SAFETY
Our solutions deliver advanced analytics and instant response for modern surveillance needs.
AUTOMATION
Enhancing efficiency in automated systems, our products provide precise data management and long-lasting performance in industrial applications.
规格表
| Model Name | EGPU-3401 |
|---|---|
| Module Type | M.2 to Four USB 3.0 Module |
| Form Factor | M.2 2280 B+M Key |
| Function | Storage |
| Input I/F | PCI Express 2.0 x1 |
| Output I/F | USB 3.0 |
| Output Port | 4 |
| Output Connector | 2 x 19-pin Header |
| Max. Power Consumption | 1.41W (3.3V x 427.2mA) |
| Dimension (W x L x H/mm) | 22.0 x 80.0 x 8.45 |
| Temperature | Operation : S/T 0°C ~ 70°C；W/T -40°C ~ 85°C (Ta) Storage : -55°C ~ 95°C (Ta) |
| Vibration | 5G@[7~2000Hz] |
| Shock | 50G@0.5ms |
| OS Support | Windows : 10 (32 / 64bit), and above version Linux : Kernel v2.6.0, v2.6.8 |
| Warranty | 3 Years |
| Notes | After Win8 and Linux Kernel v2.6.31 supports built-in xHCI 1.0. |
产品料号
| 型号 | 简介 |
| EGPU-3401-C1 | M.2 2280 to Four USB 3.0 Module / Standard Temperature |
| EGPU-3401-W1 | M.2 2280 to Four USB 3.0 Module / Wide Temperature |
